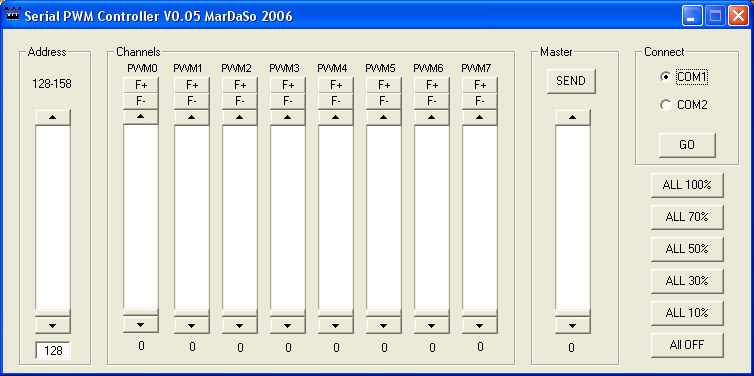

File for sending pwm commands to 1 to 31 controllers.
And the MikroBasic source files for a Pic 16F628A (internal 4 Mhz oscillator) fits in the 2k demo version. (see www.mikroe.com).
Use it at your own risk. (source code update: 18/12/2006)
Here the hardware setup. the pic processor I use is a 16F628A and not the one in the schematic (IC1). IC3 = ULN2803 and IC4 = SN75176. When I have the right Eagle libs iI will update the schematic.
